A Double-Sided PCB, also known as a Dual-Sided PCB or Dual Layer PCB, is a type of printed circuit board that has copper traces on both sides of the board. This design allows for a higher density of components and more complex circuits to be integrated into a smaller space.
Our Double-Sided PCB product features a Standard special technology, making it suitable for a wide range of electronic applications. With two layers, this PCB provides flexibility in routing and connecting components, making it a popular choice for various electronic devices.
One of the key special technologies offered with our Double-Sided PCB is Impedance Control with a tolerance of ±10%. This feature ensures that the electrical characteristics of the PCB are maintained within specific limits, enhancing signal integrity and reducing electromagnetic interference.
When it comes to surface finishing options, our Double-Sided PCB product offers a variety of choices including HASL (Hot Air Solder Leveling), OSP (Organic Solderability Preservative), ENIG (Electroless Nickel Immersion Gold), Immersion Gold, and lead-free options. These surface finishes provide protection against oxidation, facilitate soldering, and improve overall reliability.
The solder resist color available for our Double-Sided PCB is Green, which is a standard color widely used in the industry. The solder resist layer not only provides insulation and protection for the copper traces but also helps in identifying different components and ensuring proper soldering during assembly.
With two layers of copper traces, our Double-Sided PCB allows for more complex circuit designs and improved signal integrity. Whether you are working on consumer electronics, industrial equipment, automotive applications, or any other electronic device, our Double-Sided PCB can meet your requirements for reliability and performance.
Our Double-Sided PCB product is manufactured using high-quality materials and advanced production techniques to ensure consistent quality and reliability. Whether you need a small prototype batch or a large production run, our Double-Sided PCB can be customized to meet your specific requirements.
In summary, our Double-Sided PCB product offers a versatile and reliable solution for your electronic applications, with a Standard special technology, two layers for increased design flexibility, Impedance Control for improved signal integrity, a range of surface finishing options, and a Green solder resist color. Trust our Double-Sided PCB to meet your needs for high-performance and high-quality circuit boards.
| Copper | 1oz |
| Number Of Layers | 2 |
| Special Technology | Standard |
| Materials | FR4 |
| Surface | OSP |
| Board Thickness | 1.6mm |
| Type | Offline |
| Surface Finishing | HASL, OSP, ENIG, Immersion Gold, Lead Free |
| Conductor Space | 5 Mil |
| Other Service | PCB Design/PCB Assembly |

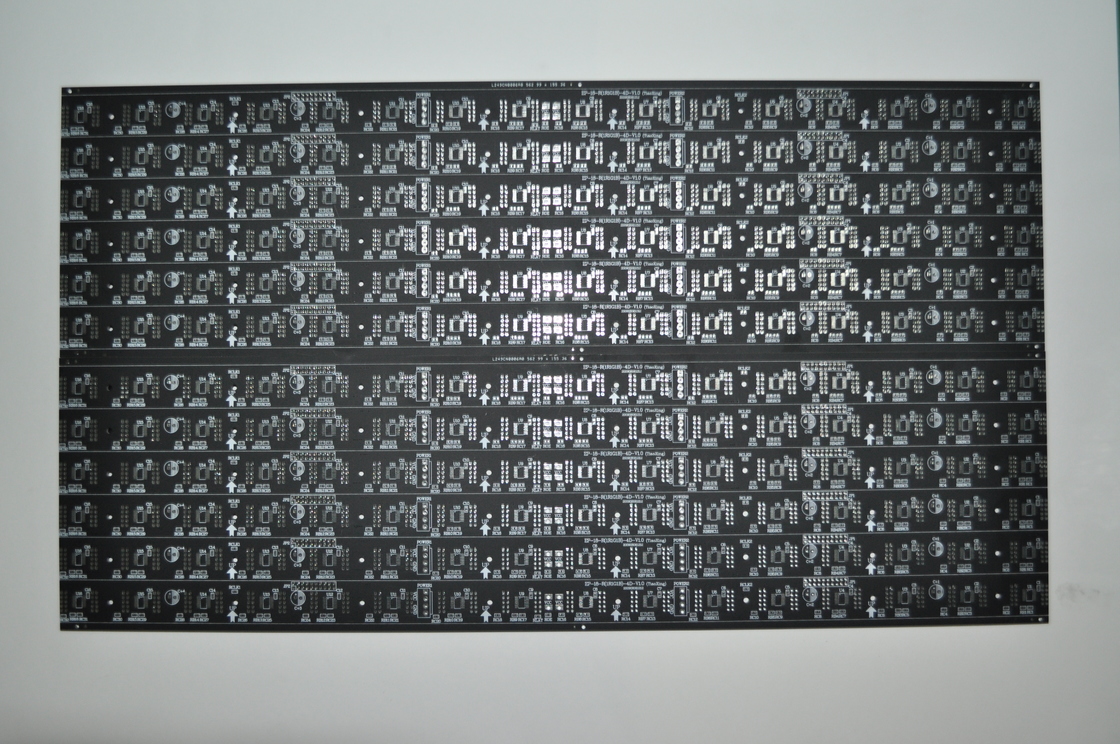

An Extra Long Double-Sided PCB made with high-quality FR4 materials is perfect for applications where a longer and more durable circuit board is required. With a length of up to 1.5m, this Twin Layer PCB offers superior performance and reliability in various scenarios.
The 1oz copper on each side of the Double-Sided PCB provides excellent conductivity and allows for efficient power distribution. The 35um finished copper ensures stability and durability, making it suitable for demanding environments.
With a minimum hole to copper distance of 0.2mm, this PCB is ideal for intricate designs and applications that require precise connections. The green solder resist color not only enhances the aesthetics but also provides protection against environmental factors such as moisture and dust.
Product Application Occasions and Scenarios:
Product Customization Services for Double-Sided Printed Board (Bi-Layer PCB):
Min. Hole To Copper: 0.2mm
Surface: OSP
Special Requirement: Halogen Free/impedance Control
Number Of Layers: 2
Special Tech: Impedance Control; ±10%
Our Product Technical Support and Services for the Double Sided PCB include:
- Expert assistance with product installation and setup.
- Troubleshooting support for any technical issues that may arise.
- Guidance on best practices for utilizing the Double Sided PCB efficiently.
- Product training and educational resources to help you maximize the benefits of the Double Sided PCB.
